800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine

Name: 800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine
Brand: OUCO
Price: 1 USD

Buy cheap 800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine product

Brand Name : OUCO

Model Number : OUCO-800T

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 2500 Set/Sets per Year

Delivery Time : 35 work days

Price : Negotiable

Packaging Details : shipping container

Product Name : New Spin Bar Plastic Cup Making Machine Price Hot Sales

Ejector Stroke( : 270 mm

Ejector Force : 166 kN

Theoretical Shot Volume : 4717 cm³

Screw diameter : 105 mm

Open Stroke : 1050 mm

Warranty of core components : 1 Year

Stable Performance : Short Cycle Time

Contact Now

800T New Spin Bar Plastic Cup Making Machine Price Hot Sales

OUCO Provide Leading technology and performance plastic cup making machine, China unique producer, central locking toggle.
Injection molding compounds (CIML) fill the blanks in Asia. Electro-hydraulic hybrid 2 platen machines are special for plastic cups industry with the leading level.

Product Parameters

Plastic Processed:	PP	Weight (KG):	28000
Condition:	New	Open Stroke:	1050 mm
Style:	Horizontal	Power :	40.9 kW
Distance between Tie Bars(Width):	955 mm	Warranty:	1 Year
Distance between Tie Bars(Height):	1055 mm	Key Selling Points:	Energy saving
After-sales Service Provided:	Engineers available to service machinery overseas, Field maintenance and repair service	Applicable Industries:	Food & Beverage Factory, Home Use
Ejector Stroke:	270 mm	Showroom Location:	United States, Germany, India, South Africa
Ejector Force:	166 kN	Machinery Test Report:	Provided
Theoretical Shot Volum:	4717 cm	Video outgoing-inspection:	Not Available
Injection Rate :	686 g/s	Warranty of core components:	1 Year
Machine Type:	Hydraulic	Core Components:	Motor, Pump
Injection Weight :	4339 g	Color:	White+Red
Screw diameter :	105 mm	Clamping Force (kN):	8000
Screw L/D Ratio:	23	Automatic:	Yes

800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine

Main Features

Big: Bigger one size than other brand machines.
Precision: Products higher precision.
Save: Help customer save 2- 5% material.

800T Hydraulic Injection Moulding Machine Spin Bar Plastic Cup Making Machine

ouco centre clamping structure

100% clamping force use.

Less possibility of flash, save flash trim work.

Save 2% - 5% material.

Offer good protection to mould, platens and tie bars.

Opening stroke 10 - 20% longer.

Traditional structure

With heavy clamping force waste, only 80 - 85% efficiency.

Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.

Certifications

Detailed Images

1, Fully optimized hydraulic system, efficiency 10% higher than last series( Standard EK) .
2, Hydraulic parts from famous international manufacturers, ensure machine with reliable performance.
3, Conform to GB, CE, UL, KCS or other safety standard.

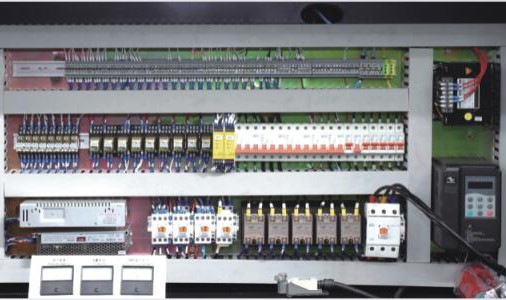

1, Optimized electrical cabinet design, conform to GB, CE, UL, KCS or other safety standard.

2, Electrical parts from famous ithernational manufacturers, ensure machine with reliable performance.

3, Advanced PLC( KEBA, BECKHOFF, etc. ) , available as opption.

1, World leading screw plasticizing set design with technology from Europe.

2, Srew for special purposes ( PC, PMMA, POM, etc. ) available as option.

3, Customized plasticizing set available for special application.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
